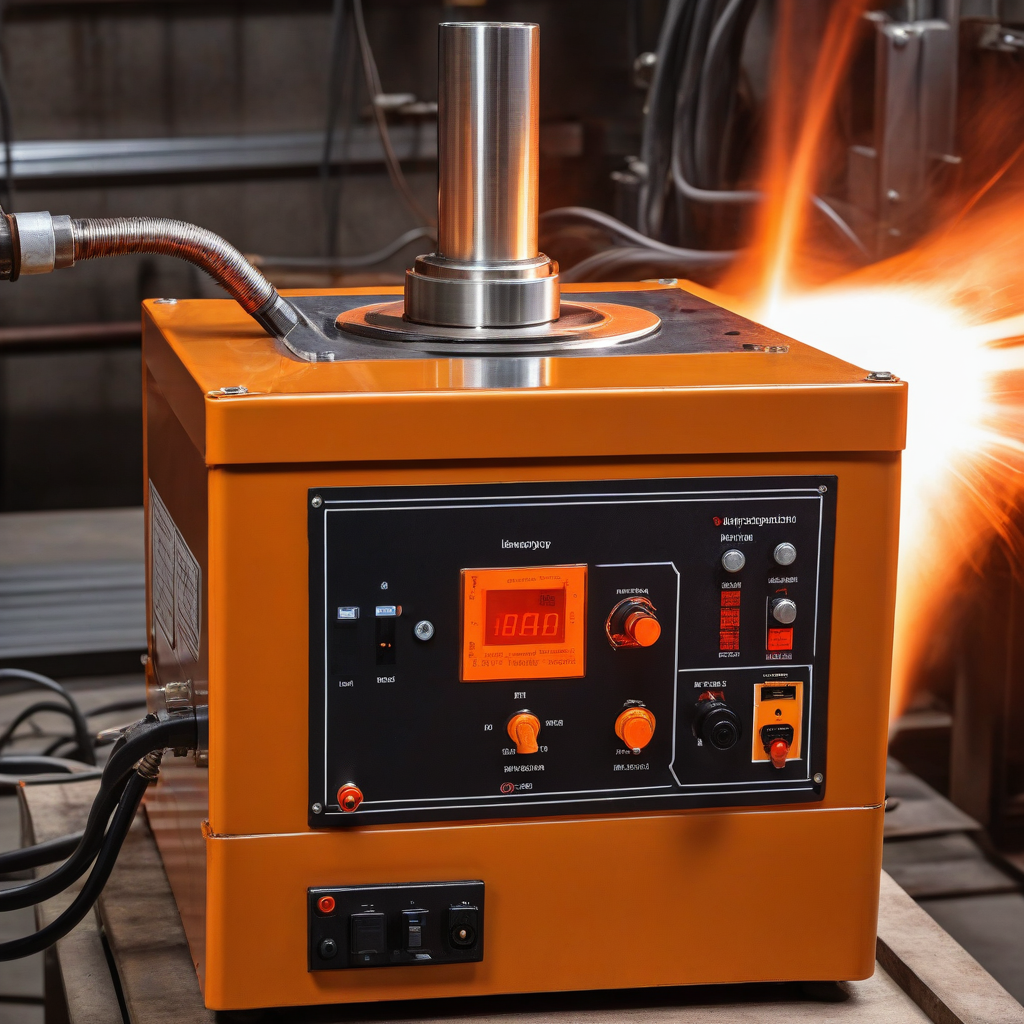

Electromagnetic induction bearing heater uses electromagnetic induction principle to convert 50HZ AC to DC, then inverts to 20KHZ high-frequency AC through control circuit. High-frequency current generates magnetic field through the coil, rapidly heating metal workpieces to thermal expansion temperature for easy disassembly.
Widely used in motor maintenance, metallurgy, power, mining industries for hot disassembly of large and medium bearings, couplings, gears, pulleys, bushings and other metal workpieces. Portable hand-held design, easy operation, one-button start.
Working Principle: Electromagnetic induction heating → Rapid workpiece heating → Thermal expansion → Easy disassembly
| Applicable Workpiece | Bearings/Couplings/Gears/Pulleys/Bushings/Rolls |
|---|---|
| Temperature Range | 200-400°C |
| Heating Method | Electromagnetic Induction (20KHZ High-Frequency) |
| Power Supply | 220V/380V (Any Phase Sequence) |
| Power Range | 2-20KW |
| Coil Turns | ~25 turns (adjusted per workpiece) |
| Safety Protection | Over-temp/Over-voltage/Over-current/Phase-loss |
| Coil Types | Flat/Arc/Hemispherical coils |
| Equipment Weight | ~15KG (Portable) |
| Applicable Materials | Cast iron/carbon steel/stainless steel/graphite and other magnetic materials |
